Mobile Phone keypad,plastic translucent keys,electronics
components,integrated circuits (IC),electrical
appliances,communications products,sanitary
ware,tools,accessories,knives,eyeglasses and clocks,jewelry,
auto parts,luggage buckle,cooking itensiles,stainless steel
products and other industries.
Electronic Components : Resistance, capacitance, chips, printed
circuit boards, computer keyboard.
Apparatus And Meter: Panel signs, precision equipment ,etc.,
Instrument: Panel signs nameplates, precision equipment ,etc.,
Hardware Tools : Knives, tools, measuring tool, cutting tool, etc.,
Automobile Parts : Pistons, piston rings, gears, shafts, bearings,
clutch, lights, etc.,
Mechanical Parts : Bearings, gears, standard parts, motors, etc.,
Daily Necessities : Handicrafts, zipper, key holder, sanitary ware,
etc.,
Jewelry: Rings Jewelry, gold, silver,etc.
Food, drinking packing: Plastic packings,etc.
Applicable Materials of fiber laser marking machine
Metal(including rare metals),engineering plastics,electroplating
materials,coating material,plastic,rubber,
epoxy resin,ceramic,plastic,ABS,PVC,PES,steel,copper and other
materials
Main Features of Huahai Laser Marking Machine
1. High-tech,and it can make on both metal and non-metal.
2. Self-clean system
3. Lifetime over 100000hours.
4. Accuracy and speed is very well.
5. This Fiber laser marking machine price is economic and
reasonable.
Service
1. Twoyears quality guaranty, the machine with main parts(excluding
the consumables)
shall be changed free of charge when if any problem during the
warranty period.
2. Lifetime maintenance free of charge.
3. Free training course at our plant.
4. 24 hours on line service each day, free technical support.
5. Machine has been adjusted before delivery

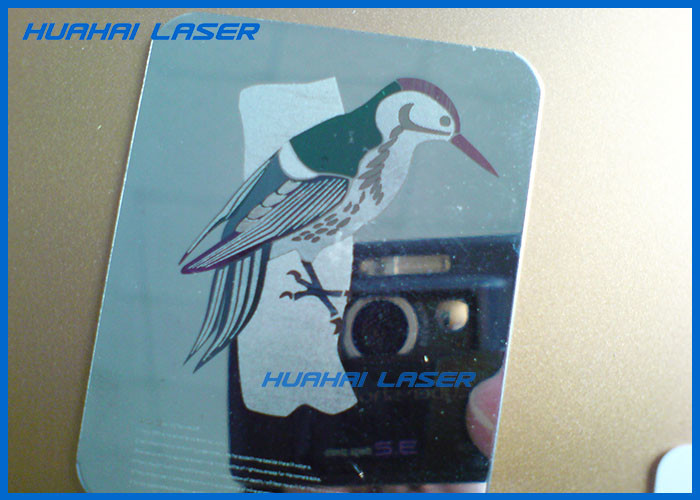

Samples by MOPA Fiber Laser
Technical Parameters
Model | YLP-HB Series |
Laser power | 20W / 30W / 60W |
Supports graphical format | PLT, BMP, JPG, PNG, TIP, PCX, TGA, ICO, DXF |
Beam quality | m2 <2 |
Power stability | (8h) <± 1% rms |
Pulse repetition frequency | 1KHZ ---- 1000KHZ |
Power consumed | <800W |
Minimum line width | 50μm |
Minimum character | 0.3mm |
Laser Wavelength | 1064nm |
Galvanometer Size | 110 * 110mm (standard) |
Whole machine power | 500w |
Cooling way | Air cooling |
Operating voltage | 110/220V ± 10% /,50/60HZ |
Ambient operating temperature | 15 ° C - 35 ° C |
Weight | 80KG |
Dimensions | 600H * 200W * 700L (mm) |
Packing | plywood wooden packaging |
Marking software | EZcad |
Power supply | Taiwan meanwell |
Optional part | XY table , Rotary device etc. |
Optional working area | 150*150mm , 175*175mm , 300*300mm |
