Huahai 3D series dynamic focusing fiber laser marking machine can
be applied to any curved surface, sphere, step and irregular
surface marking;
The laser focal length can be changed through the focusing axis,
can also realize deep carving, to meet all 3D marking requirements;
Equipped with MM3D dynamic focus control software to realize high
precision marking,deep marking on any shaped objects.
System Characteristic
1, The max marking field is 600mm*600mm, the max scan height is
130mm;
2, The galvanometer scanner focus beam size is 50um, response speed
can meet precision filling up to 5000mm/s;
3, Support 3D model importing, and 2D graphics can be directly
coated or projected on the built-in commonly used curved surface;
4, Equipped with shining blue LED and unique streamlined design of
marking head, specially applied for high-end laser market;
5, Adopt integrated structure, small size, fine sealing, to ensure
the stability of long time working.
6, Equip otor for Auto-lifting of the laser head, which is easier
to operate and help you find the focal length faster.
Euipment Features
1) 3D laser machine can mark flat surface 500*500mm and it can mark
unflat surface 200*200mm.Very good 3D marking performance.
2) Fiber Laser Source: German IPG fiber laser or China fiber laser
Optional (different price). NO maintenance laser source. Fiber
laser servicetime 100,000 hours.
3) High speed galvo scanner : German or China made Optional
(different price).
4) Easy Operate without route maintenance.
5) Higher precision, faster speed.Air cooling, small size,low power
consumption.
6) Red light preview, how the marking position before lasering.
7) Up and Down Lifter laser head, (desktop model) and up and down
worktable ( Portalble model).easy to marking engraving different
workpiece.
8) Rotary attachment optional, can engrave and mark inside and
outside ring jewellery.
9) High temperature resistance, good for marking medical equipment
etc that requires sterilization.
10) The durable & fine marking quality, widely use in jewelry,
mobile phones, and other high value items.

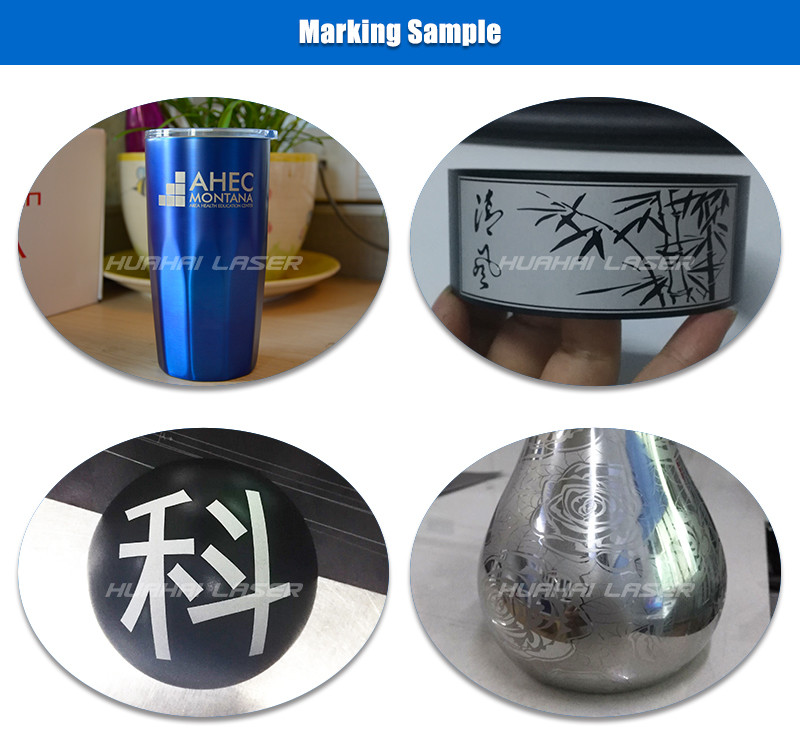

Samples by 3D Laser
Technical Parameters
| Model | YLP-HB Series |
| Laser power | 20W / 30W / 60W |
| Supports graphical format | PLT, BMP, JPG, PNG, TIP, PCX, TGA, ICO, DXF |
| Beam quality | m2 <2 |
| Power stability | (8h) <± 1% rms |
| Pulse repetition frequency | 1KHZ ---- 1000KHZ |
| Power consumed | <800W |
| Minimum line width | 50μm |
| Minimum character | 0.3mm |
| Laser Wavelength | 1064nm |
| Galvanometer Size | 110 * 110mm (standard) |
| Whole machine power | 500w |
| Cooling way | Air cooling |
| Operating voltage | 110/220V ± 10% /,50/60HZ |
| Ambient operating temperature | 15 ° C - 35 ° C |
| Weight | 80KG |
| Dimensions | 600H * 200W * 700L (mm) |
| Packing | plywood wooden packaging |
Marking software | EZcad |
Power supply | Taiwan meanwell |
Optional part | XY table , Rotary device etc. |
Optional working area | 150*150mm , 175*175mm , 300*300mm |
