Precision instruments, computer keyboards, auto parts, plumbing
parts, communications equipment, medical equipment , bathroom
equipment, hardware tools, luggage decoration, electronic
components, home appliances, watches, molds, gaskets and Seals,
data matrix, jewelry, cell phone keyboard, buckle, kitchenware,
knives, cooker, stainless steel products, aerospace equipment,
integrated circuit chips, computer accessories, signs molds,
elevator equipment, wire and cable , Industrial bearings, building
materials, hotel kitchen, military, pipelines.
Tobacco industry, bio-pharmaceutical industry, liquor industry,
food packaging, beverage, health care products, plastic buttons,
bathing supplies, business cards, Clothing accessories, cosmetics
packaging, car decoration, wood, logos, characters, serial number,
bar code, PET, ABS, pipeline, advertising,logo
Applied Materials
1. All metals: gold, silver, titanium, copper, alloy, aluminum,
steel, manganese steel, magnesium, zinc, stainless steel, carbon
steel / mild steel, all kinds of alloy steel, electrolytic plate,
brass plate, galvanized sheet , Aluminum, all kinds of alloy
plates, all kinds of sheet metal, rare metals, coated metal,
anodized aluminum and other special surface treatment,
electroplating the surface of the aluminum-magnesium alloy surface
oxygen decomposition
2. Non-metallic: non-metallic coating materials, industrial
plastics, hard plastics, rubber, ceramics, resins, cartons,
leather, clothes , wood, paper, plexiglass, epoxy resin, acrylic
resin, unsaturated polyester resin material
Main Features
1. The fiber laser generator is high integrated, has superior laser
beam and uniform power density. Output laser power is stable. This
design highly increase the machine’s anti-reflection ability with
optical isolator, be able to mark on most high reflective materials
such as aluminum, copper, gold and silver without the shadow and
virtual open phenomenon.
2. Adopts advanced digital high speed scanning galvanometer, quick
speed without deviation, small volume, good stability, and
performance reached the international advanced level.
3. Modular design, separate laser generator and lifter, more
flexible, can mark on bigger area and complicated surface.
Air-cooled inside, small occupation, easy to install.
4. Adopt the embedded operating system, which the performance is
leading domestic peers, good touch interface and powerful control
system, can meet the demand of most industry application process in
market.
5. High efficiency for photoelectric conversion, simple operation,
Compact in structure, support harsh working environment, no
consumables.

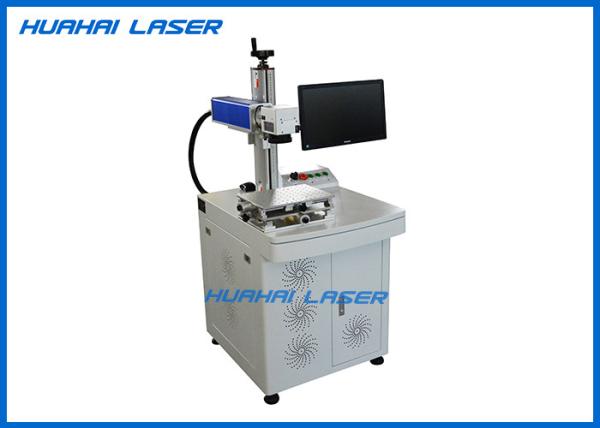

6. YLH-HB fiber laser marking machine is portable. Power box and
laser source can be separated. Easy transport and can be displayed
separately according to user’s site space situation.

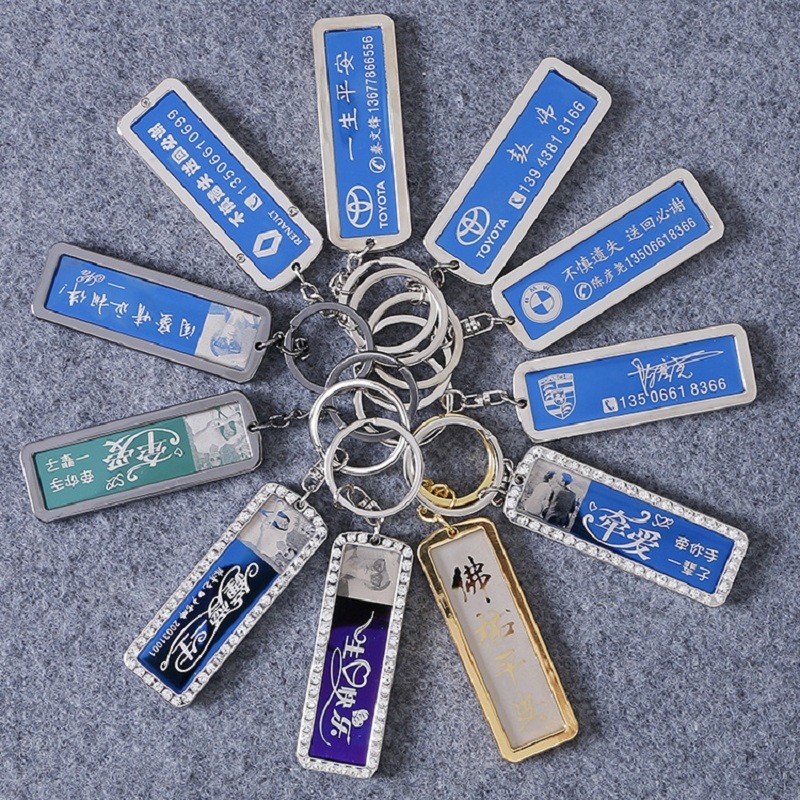

Samples by Fiber Laser
Technical Parameters
| Model | YLP-HB Series |
| Laser power | 20W / 30W / 50W /60W |
| Supports graphical format | PLT, BMP, JPG, PNG, TIP, PCX, TGA, ICO, DXF |
| Beam quality | m2 <2 |
| Power stability | (8h) <± 1% rms |
| Pulse repetition frequency | 1KHZ ---- 1000KHZ |
| Power consumed | <800W |
| Minimum line width | 50μm |
| Minimum character | 0.3mm |
| Laser Wavelength | 1064nm |
| Galvanometer Size | 110 * 110mm (standard) |
| Whole machine power | 500w |
| Cooling way | Air cooling |
| Operating voltage | 110/220V ± 10% /,50/60HZ |
| Ambient operating temperature | 15 ° C - 35 ° C |
| Weight | 80KG |
| Dimensions | 600H * 200W * 700L (mm) |
| Packing | plywood wooden packaging |
Marking software | EZcad |
Power supply | Taiwan meanwell |
Optional part | XY table , Rotary device etc. |
Optional working area | 150*150mm , 175*175mm , 300*300mm |
