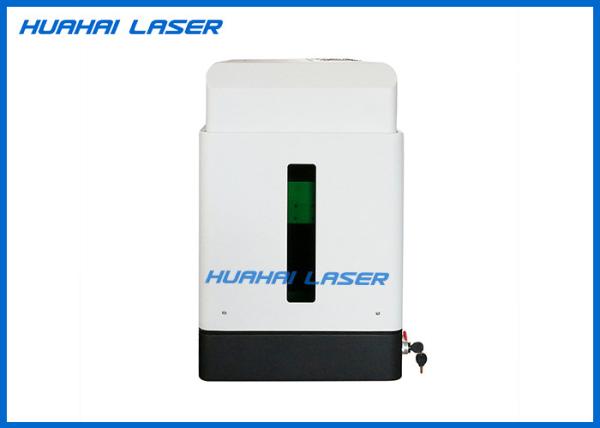

50W Full Enclosure Fiber Laser Marking Machine For Metal Deep
Engraving And Cutting
Application
The fiber laser marking machine can apply for a wide range of
industries,
Like Mobile phone keypad, plastic translucent keys, electronic
components, integrated circuits (IC),
electrical appliances, communication products, sanitary ware,
tools, accessories, knives, eyeglasses
and clocks, jewelry, auto parts, luggage buckle, cooking utensils,
stainless steel products and other
industries.
(including rare metals), engineering plastics, electroplating
materials, coating materials, plastics, rubber, epoxy resin,
ceramic, plastic, ABS, PVC, PES, steel, titanium, copper and other
materials.
Main Features:
1. Laser marking machine can mark on flat surface or round surface
with rotary jig, like rings inside and outside, pipes, etc.
2. Working area: 110*110mm, 175*175mm, 200*200mm, 250*250mm,
300*300mm optional
3. Fiber Laser source: Germany IPG or China top brand Raycus and
JPT for option. Lifetime is up to 100000+ hours.
4. High speed galvo scanner head: Germany Scanlab or china famous
brand”sino-galvo”.
5. Red light preview shows the marking position before laser
marking.
6. Handle or 3D Working table adjust the focus distance. Auto-focus
device is available. Easy to marking on different work piece
7. double red pointer help to find the correct focus.
8. Permanent marking on products, can’t be erased.
9. No consumables, free maintenance
10. High precision, fast marking. Air cooling, small size,low power
consumption.
Laser Parameters
| Item | Full Enclosure fiber laser marking machine YLP-HB50 |
| Laser Wavelength | 1064nm |
| Frequency | 20-80Khz |
| Beam Quality | M2:1.5 |
| Laser Power For Option | 20W/30W/50w/100w |
| Marking Speed | <7000MM/S |
| Marking Depth | ≤0.5MM |
| Positioning Precision | ±0.001MM |
| Min. Line Width | 0.01MM |
| Cooling Mode | Air Cooling |
| Graphic Formats Supported | PLT, DST, AI, DXF, BMP, JPG, CAD, CDR, DWG |
| Power Supply | AC 110/220V±10%, 50/60Hz |
| Working Temperature | 10-35 ℃ |
| Working Humidity | <75%( No condensation) |
| Working Environment | Clean, free of dust |
| Overall Power Consumption | < 800W |
| Laser Generator Safety Class | Ⅳ |
