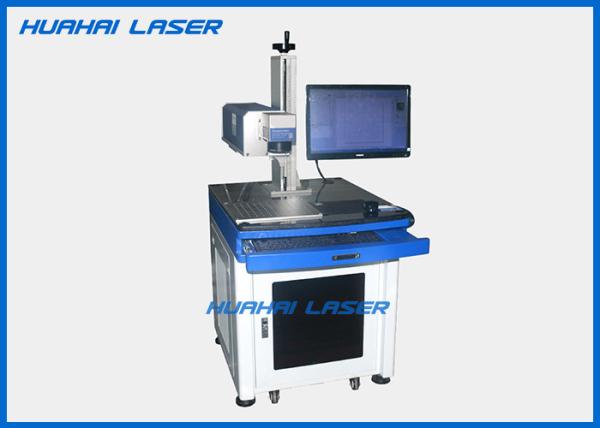

10W 532nm Green Laser Marking Machine Glass Inside Crystal Laser
Engraving Machine
Description of Green Laser Marking Machine
The laser marking machine adopts international advanced laser
resonator design and control technology, the laser can obtain
excellent beam quality in high power operation, long-term high
stability, narrow pulse width laser.
Application: the equipment is suitable for the surface processing
of most metal and nonmetal materials and the processing of coating
film. Such as metal, ceramics, watch glasses, PC, electronic
devices, instruments, PCB board and the control panel, plate
panels, plastic etc.; applied to the glass surface and internal
engraving crystal products, such as mobile phone screen, LCD
screen, optical devices, automotive glass etc.. Specially suitable
for high flame retardant material marking, engraving and other
surface treatment.
Product feature
Extensive application: suitable for processing materials that have
strong reaction to thermal radiation; can be integrated with the
production line, suitable for marking most metals and nonmetal
material.
Flexible and easy operating system:human-friendly and stable
operation process; exclusive control software can be compatible
with Auto CAD, Coreldraw, Photoshop,etc; Can automatically layout
and adjust text symbols, graph, bar code, two dimensional bar code
and serial number; Support PLT, PCX, DXF, BMP, JPG and other file
formats, TTF word stock can be used directly.
Operation and maintenance cost is very low: use semiconductor
end-pumped laser which has long service life, stable performance,
high light conversion ratio and simple operation, needs no
maintenance and save energy.
Application and market
Glass, crystal product surface and internal sculpture, such as cell
phone screen, LCD screen, optical components, automobile glass,
etc. Additionally, it also can be used for process on most metal
and nonmetal material’surface and coating film, such as metal,
ceramic, glasses clocks and watches, PC, electronic device,
instrument, PCB and control panel to the exhibition board, plastic,
etc.
Technical parameters
Laser wavelength | 532nm |
Light beam quality | <2 |
Power | 5W/7W/9W |
Repeating frequency | 0-100KHZ |
Carving range | 70*70mm/100*100mm |
Carving line speed | ≤7000mm/s |
Minimum character | 0.15mm |
Repeating precision | ±0.004 |
Cooling method | Air cooling |
Power supply | 220V/50HZ/10A |
Sample
