Brand Name : | Huahai Laser |
Model Number : | HM |
Certification : | CE,FDA |
Payment Terms : | L/C, T/T, Western Union |
Supply Ability : | 100sets/month |
Delivery Time : | 10days |
Price : | Negotiable |
532nm Green Laser Marking Machine For Plastic , Glass Inner , PCB With QR Code , Bar Code
Introduction:
Based on the large energy of 532nm laser, the selectivity of
marking materials is much better. Compared with traditional laser
marking machine, it has the advantages of low energy consumption
and easy maintenance.
Main Features:
1. Stable power output, superior beam quality, making marking more
precise and higher definition;
2. Semi-cold light source, small heat affected area;
3. A wide range of applicable materials, to make up for the problem
of many materials using fiber laser marking is not delicate enough.
Advantages:
1. Marking accuracy under 10μm, neat in marking edge and no thermal
deformation, it improves the passing rate of finished products
effectively;
2. Advanced hardware control technology and intelligent software,
easy operation, stable performance, batch processing efficiently
and economically;
3. High light-to-electricity transferability, long life, low energy
consumption, easy maintenance, save use-cost;
4. Good cooling performance, small size.
Application:
The green laser marking machine is suitable for surface processing
and coating of most metal and non-metallic materials. Such as
hardware, ceramics, glasses and clocks, PC, electronic devices, all
kinds of instruments, PCB boards and control panels, nameplate
panels,plastics, etc.;suitable for glass, crystal surface and
internal engraving, such as mobile phone screen, LCD screen,
optical device , car glass, etc. It is specially adapted to surface
treatment such as marking and engraving of high flame retardant
materials.
Specifications:
SPECIFICATIONS FOR GREEN LASER MARKING MACHINE | ||
Laser power | 6w | 10w |
Laser wavelength | 532nm | 532nm |
Laser beam Quality (M2) | <1.5 | <1.5 |
Laser repetition frequency | ≤50KHz | ≤50KHz |
Standard engraving range | 100×100 mm | 100×100 mm |
Optional engraving range | 50×50--250×250 mm | |
Engraving depth | ≤0.1mm | ≤0.1mm |
Engraving speed | ≤20000mm/s | |
Minimum line width | 0.015mm | 0.025mm |
Minimum character | 0.2mm | 0.2mm |
Repeatability | ±0.001mm | |
Power consumption of the whole machine | 1.5KW | 2.0KW |
Voltage | 220V/single phase/50Hz/10A |

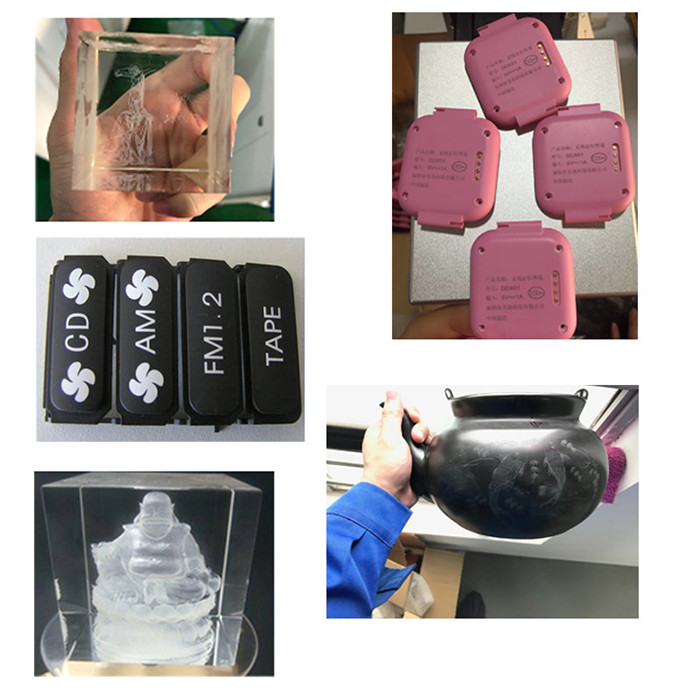

Marking Samples:
FAQ:
1> How can i install and operate laser marking machine by
myself?
Re: When you get the laser marking machine, just need to connect
with power cord, then machine can start work. Because the marking
software is installed in computer, engineer have set the parameters
well before delivery. Also, the complete English user manual and
operation video will be sent to you. 98% customers can easily use
the machine.
2> How to get technical support after purchasing the laser
marking machine?
Re: You can contact us on Skype, WhatsApp and email at any time.
Our professional engineer will solve your problem perfectly. If you
need any remote assistant support, we will support you with
Teamviewer software.
3> Will the laser marking machine come with protective goggle?
Re: Yes, we will provide it with the machine together free of
charge.
4> Is there any consumables for the laser marking machine ?
Re: There is no consumables, and maintenance-free. Laser source
lifetime up to 100000+ hours.
5>What is the warranty of the machine?
Re: The warranty is 1 year, but permanent service.
![]() |
