    355nm UV Laser Marking Machine 3W 5W 10W For Plastic Ceramic Metal ABS

    Ask Lasest Price
    Brand Name : HUAHAI LASER
    Model Number : UV laser HW-03P, 05P, 10P
    Certification : FDA CE
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram ,Paypal
    Supply Ability : 200-500 Sets/Month
    Delivery Time : 3-7 Working Days
    • Product Details
    • Company Profile

    355nm UV Laser Marking Machine 3W 5W 10W For Plastic Ceramic Metal ABS

    355nm UV laser Marking Machine For Marking On Plastic, Ceramic, Metal, ABS

    (Model name :HW-03P, 05P, 10P )


    Applications of UV laser marking machine


    Cosmetics, pharmaceuticals, food and other polymer bottles’ surface. Marking effect is fine, clear and solid, which is better than the injekt printing and no pullution produced.

    Also used in marking and dicing flexible PCB board, drilling tiny hole or blind-hole on silicon wafers, two-dimensional coding on LCD, glass container surface, metal surface coating, plastic keys, electronic components, gifts, communication equipment, construction materials


    Advantages of UV laser marking machine


    Focused UV light spot size is small , heat-affected area during processing is mimimum,So it is used in ultra fine and special material’s marking.

    Since UV laser did not produce any thermal effects and burning issues, the result of the marking is precise , smooth and steep.

    A lot of material will absorb UV light at 355nm except Copper, so UV laser are suitable for processing more types of material


    Product Description

    Laser Source

    UV Laser

    Output Power

    3W, 5W,10W

    Wavelength

    355nm

    Beam Quality

    <2

    Repeat Frequency

    10khz--- 100khz

    Pulse Energy

    2mJ

    Beam Divergence

    -0.3 to +0.3mrad

    Laser Class

    IV

    Resolution

    18μ

    Repeatablility

    50μ

    Marking Scope

    50*50mm 100x100mm

    Linear Speed

    800 character/ s

    Marking Linear Speed

    ≤12,000mm/s

    Marking Depth

    Max. 1.0- 1.5mm (hard steel)

    Min. Line Width

    0.012mm

    Min. Character Size

    0.15mm

    Repeat Accuracy

    ±0.003mm

    Input Power

    0.5kw

    Electrical Source

    220V / Single-Phase Circuit / 50/60Hz /4A

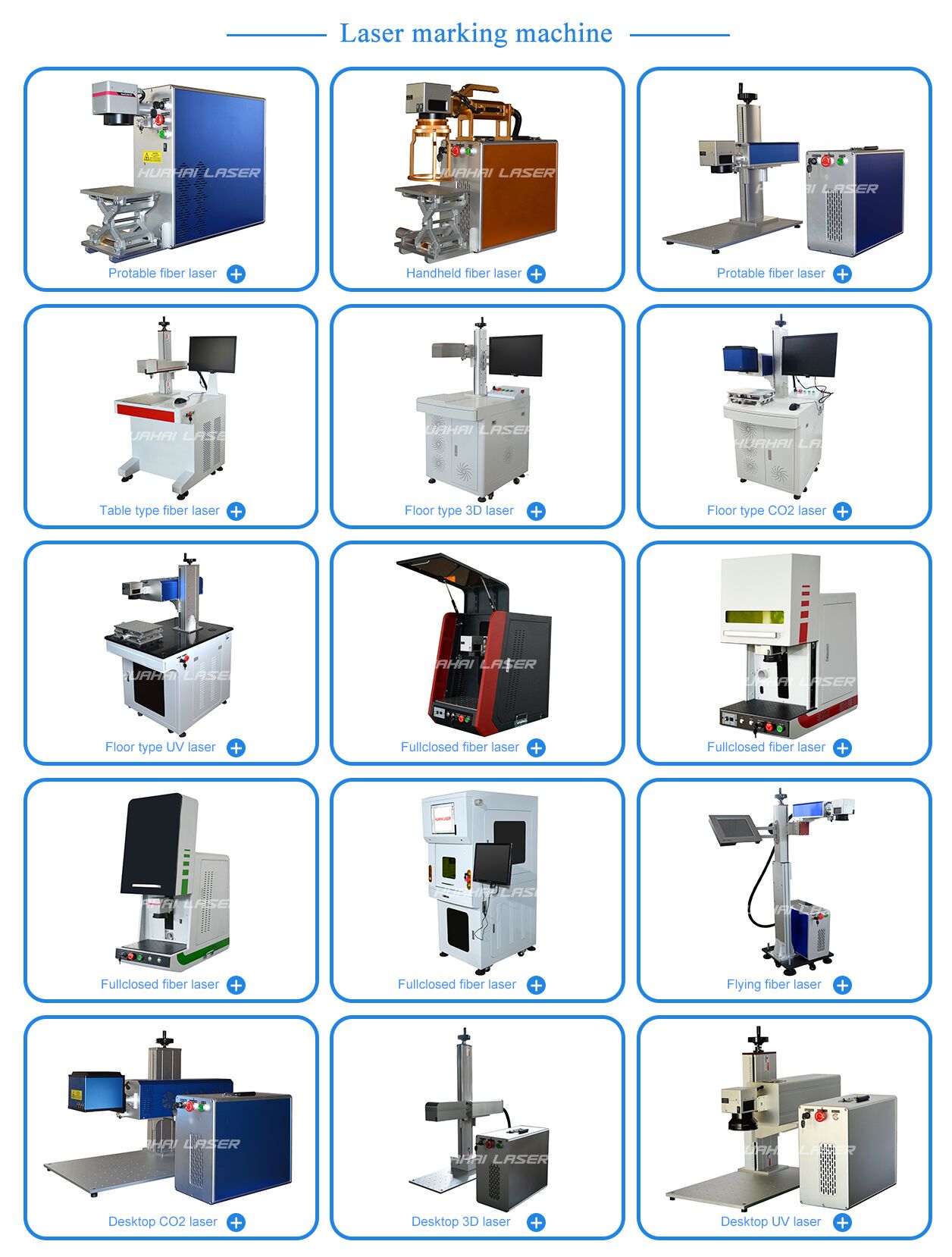

    Other Relative Marking Machine
