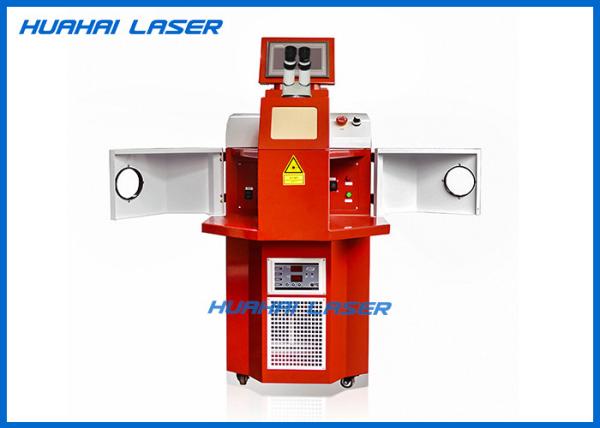

    Goldsmith Yag Jewerly YAG Laser Welding Machine High Temperature Resistant

    Ask Lasest Price
    Brand Name : HUAHAI LASER
    Model Number : HB-SW200
    Certification : CE , FDA
    Price : Negotiable
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 200sets per month
    Delivery Time : 7-10 working days
    • Product Details
    • Company Profile

    Goldsmith Yag Jewerly YAG Laser Welding Machine High Temperature Resistant

    200W Yag Jewerly Laser Gold Welding Soldering Machine For Goldsmith

    Product Introduction

    Widely used in tiny parts of precision machining, rings, pendants,bracelets, dentures, and cell phone charger interface, hardware, clock, sports, golf, medical devices. Titanium alloy ornaments, frames, especially for gold and silver jewelry fill the holes, weld line, embedded parts welding.

    Features Of Jewelry Laser Spot Welding Machine:


    ● Energy, pulse width, frequency and focus can be adjusted within a wide range to achieve different welding effects.
    ● Ceramic reflector used in the laser pump chamber is imported, which is corrosion resistant, high temperature resistant, high electrical/optical conversion.
    ● World-leading automatic light shielding system is employed to remove harmful lighting on eyes during operation.
    ● 24-hour continuous operation, with stable operating performance,
    ● Free of maintenance within 10000 hours.
    ● Personalized design in compliance with ergonomics principles.


    Main Structure & Maintenance


    The whole system is composed of:

    A. Laser Generator B. Laser Power C. Optical System

    D. Control system E. Cooling system


    Operation


    Step 1) Start the chiller and wait for 1-2 minutes until the water temperature reaches the target value you set. Normally 25 Celsius Degrees.

    Step 2) Turn on the air switch behind the welder

    Step 3) Twist the key switch to start laser welder

    Step 4) Press “OK” button on control panel, the word OPEN turns into CLOSE. Set parameters correctly based on the type of material and the result of test shooting. Sometimes it relies more on operator’s experience.

    Step 5) Turn on the LED light and adjust the position of cover gas nozzle before welding so that your work piece can be prevented from quick oxidation. You can also change all parameters by the joystick inside the welding chamber or stop welding immediately by the emergency button.

    Step 6) Now you are free to weld.

    step 7) When you finish welding, move the dash on CLOSE, press OK button, turn off the key switch, turn off the chiller and cut the total power. Finally, please open the protective cover and clean the dusts in the welding chamber. We strongly suggest you to do this at least once a week.


    Technical Parameters


    ModelHB-SW200
    Laser power200W
    Laser typeND:YAG
    Single pulse maximum energy90J
    Laser wavelength1064nm
    Laser welding depth0.1-3.0mm
    Spot size adjustable0.2-3.0mm
    Pulse width0.1ms-20ms
    Combo laser welding frequency0-50HZ
    Machine power consumption≤6kw
    Observing systemHigh 10×Microscope/CCD
    Electrical requirementAC220V±10%/50Hz 30A
    Cooling methodWater cooling
    Protective gasArgon

    Sample show
