    High Reliability Mould Laser Welding Machine 0.2-3.0mm Focal Spot Diameter

    300w 400w Mould Laser Welding Machine For Metal Mold Repairing


    Introduction:


    Mould laser welding machine is to weld the special welding wire to the damaged parts of the die through the instantaneous high heat energy generated by the laser, and firmly weld with the original base material. After welding, it is processed into a smooth surface by EDM or grinding, so as to repair the die.
    Widely used in die repair and metal parts repair, can weld a variety of die materials: S136, NAK80, 718, 738, P20, SKD-11, SKD-61, H13, W302, GS2344, GS2343, GS2082, etc.


    Features:


    1. This mold laser welder is designed according to ergonomics, which meets the need of exquisiteness, blazonry, stable performance of jewelry industry, and is suitable for long and continuous working time
    2. Big inner space, convenient for the placing of tools and tongs.
    3. A laser spot and parameter switch is installed in the working zone.
    4. Being convenient to clean the working zone ant to collect the welding chips.
    5. Annular, shadowless, adjustable brightness LED-lamp makes it clearer when observe the welding area.
    6. More subtle laser spot meets the needs of subtle welding.


    Advantages:


    Laser welding is to irradiate a high energy density laser beam on two parts of the material, so that the local heating melt, and then cooling and solidification into one. Compared with traditional welding technology, laser welding has the following advantages:
    1. Small heat-affected zone of laser repair welding will not lead to deformation of precision die, large welding depth, strong welding, sufficient melting, no repair marks, no depression in the joint of molten pool melt bump and matrix.
    2. With a special microscope observation system for cross cursor, the magnification can be adjusted to achieve precise alignment.


    Application:


    This machine is specialized in mold repair, which can be better merge welding wire and broken mold. The materials that can be welded are extensive: cold work alloy steel, hot work alloy steel, nickel tool steel, high grade steel, steel alloy, high tenacity aluminum alloy, etc.


    Specifications:


    TECHNICIAL PARAMETERS
    Model
    HB-YW300/HB-YW400
    Maximum Laser Power
    300W//400W
    The Laser Wavelength
    1.06um
    Laser Welding Frenquency
    <=50HZ/100HZ
    Laser Welding Depth
    2mm/3mm
    Positioning System
    Microscope or CCD
    Laser Welding Wire
    0.2-0.8
    Electricity Demand
    220V/50HZ/40A, 380V/50HZ/40A
    Cooling Mode
    Water Cooling
    The Whole Machine Consumes Power
    <=6KW/8KW

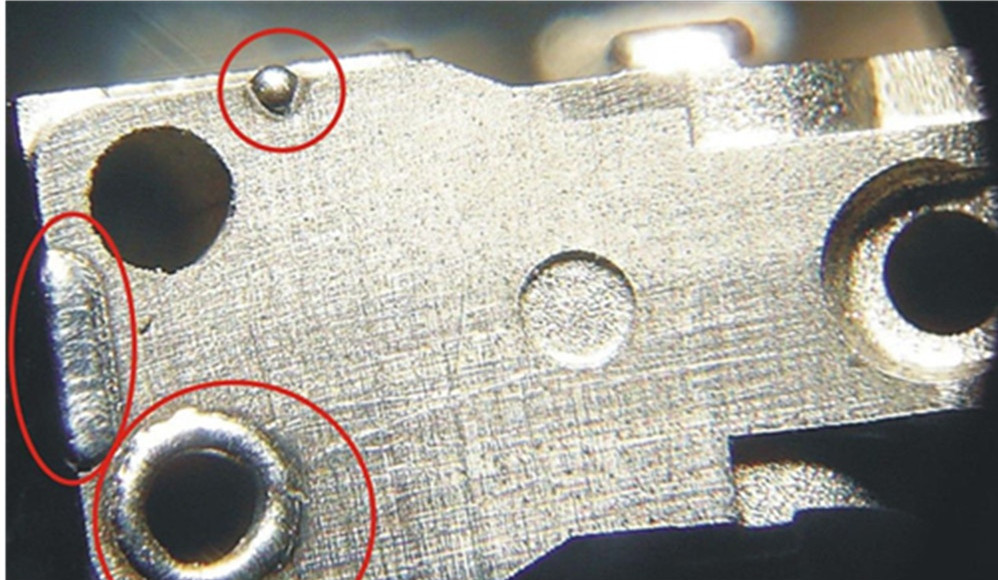

    Samples:


    High Reliability Mould Laser Welding Machine 0.2-3.0mm Focal Spot Diameter
