    Cantilever Laser Welding Systems High Precision For Tool Steel Aluminum Alloy

    300W Cantilever Laser Mould Welding Repair Machine For Tool Steel Aluminum Alloy

    Product Introduction

    Mold laser welding machine is designed specifically for the mould industry, used for precision mold repair, such as digital products, mobile phones, toys, automobiles, motorcycles and other mould making and molding industries. Through the mould repair, it can make full use of the original mould, greatly save the production cost and improve the working efficiency. This technique can be applied to modify the mold design or size, shorten product development cycle.


    Application Of Mould Laser Welding Machine:


    Laser mold welding machine is mainly used for the repairing of precision plastic molds anthe repair welding of different types of mold steel. In addition, it also can be used for the wsorts of small and precision metal parts (K gold, Platinum, Titanium, Silver, Copper NickeMagnesium, Stainless steel, etc.), featuring firm welding joints and smoothly welding lines.


    Machine feature


    The working principle of laser deposition welding system is as below: base on laser high heat energy and focus point of welding technology, effectively handle all small parts of the welding and repair work, makes up for the traditional argon arc welding technology in the fine repair welding surface. As to avoid the thermal strain and post-processing these two thresholds, and greatly save the mold production cycle.


    Main Advantages


    Tailored for mould industry, adopts German technology, adopts unique structure design, suitable for all kinds of large, medium and small mould repair.

    1. Adopts the imported ceramic light-gathering cavity, corrosion resistance, high temperature resistant, cavity life (8 to 10) years, xenon lamp life is more than 8 million times.

    2. Using the world's most advanced automatic shading system, eliminates the stimulation to the eyes in work .

    3. Laser head can rotate 360 degrees, the overall light path can rotate 360 degrees, as well as the electric lift up and down, back and front , especially suitable for all kinds of large, medium and small mould repair.

    4. Parameter adjustment adopts intelligent remote control, simple and quick operation.
    5. Three-dimensional moving workbench can be electric controlled .

    6. Light spot size electric regulation.


    Technical Parameter


    ModelHB-YW300
    Working area500*400MM
    Three axis moving distanceX=220mm,Y=150mm(X,Y move by manual ,Z axis electric controlled)
    Workbench load-bearing≤200KG
    Machine electricity220V±10%/50/60Hz or 380V±10%/50/60Hz
    Laser typeNd: YAG
    Spot adjusting range0.1~0.3mm
    Spot diameter0.2-3.0mm
    Laser wavelength1064nm
    Pulse width≤20ms
    Max laser power300W
    Pulse frequency≤50Hz
    Laser output focal length80mm/100mm/120mm(Optional)
    Cooling systemWater cooling
    Observation systemMicroscope (Rotary 360º)
    Protective gasArgon
    Welding wire diameter0.1mm~0.8mm

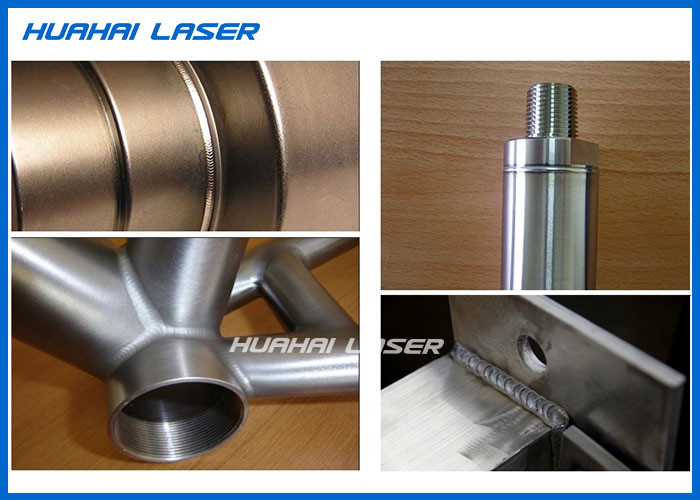

    Sample show


    Cantilever Laser Welding Systems High Precision For Tool Steel Aluminum Alloy
