Enclosed Fiber Laser Welding Machine High Precision For Hardware Metal

    Buy cheap Enclosed Fiber Laser Welding Machine High Precision For Hardware Metal from wholesalers

    Buy cheap Enclosed Fiber Laser Welding Machine High Precision For Hardware Metal from wholesalers
    • Buy cheap Enclosed Fiber Laser Welding Machine High Precision For Hardware Metal from wholesalers
    • Buy cheap Enclosed Fiber Laser Welding Machine High Precision For Hardware Metal from wholesalers

    Enclosed Fiber Laser Welding Machine High Precision For Hardware Metal

    Ask Lasest Price
    Brand Name : HUAHAI LASER
    Model Number : HB-FW
    Certification : CE , FDA Certificate
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 200 sets per month
    Delivery Time : 10-15 working days
    • Product Details
    • Company Profile

    Enclosed Fiber Laser Welding Machine High Precision For Hardware Metal

    Enclosed Continuous Fiber Laser Welding Machine For Hardware Metal

    Product Description:

    1. High speed, high precision, more refined appearance

    2. The size of solder joints can be adjusted according to the requirements, and the heat affected zone is small which will not cause the deformation of precision products

    3. Can weld small and fine geometry, suitable for all sizes of products

    4. Density welding does not appear porosity and trachoma, can be directly grinding, polishing processing

    Advantages:

    1. The fiber continuous laser welding machine uses 500W-2000W laser, the laser has a long service lifeand the service life can reach 100,000 hours.
    2. The electro-optic conversion efficiency is high, and the energy of the power shaving is 25%-30% converted into laser, and the fiber conversion rate is more than 10 times that of the YAG laser.
    3. The whole machine has no consumables. YAG pulse welding machine should replace the xenon lamp and lens regularly.
    4. The whole machine has low energy consumption, saves electricity, high stability, maintenance-free, and low cost of use.
    5. The laser welding energy density is high, welding speed is four times that of YAG pulse.the weld seam is thin,the thermal deformation is small, and the heat affected zone is narrow and deep.
    6. Optical fiber output, easy to match with automated workbench or robot to improve production efficiency,and can meet 24 hours of continuous work.
    7. Customizable large workbench and XYZ axis travel.

    Parameters:
    Device parameters
    laser device
    Continuous fiber laser
    The laser wavelength
    1070nm±5nm
    Average output power
    1000W
    The minimum spot
    0.1mm
    fiber length
    5m
    Rated power
    3.5KW
    Cold power of cold water mechanism
    1.5P
    Demand for electricity
    220V±5V 50Hz/40A
    Range of electric working table
    300×300×500mm
    External dimensions/net weight
    Host computer: 1050*500*900mm
    175kg
    cooling-water machine: 550*550*850mm
    80kg
    workbench: 1000*700*1550mm
    220kg

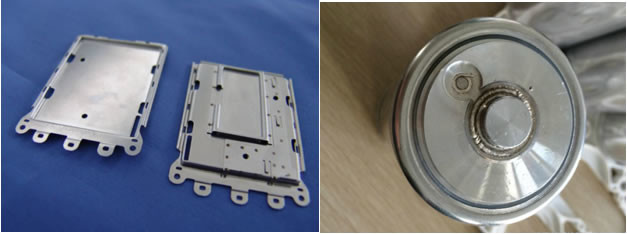

    Application Industries:
    Widely used in communications devices, IT, medical, electronics, batteries tab-lead, fiber-optic coupling devices, CRT electronic gun, metal parts.cell phone vibrating motors, clocks precision parts, automotive sheet steel optical communications industry copper parts, aluminum partsetc precision welding.
    Equipment Configuration:

    1. A set of 1000W continuous lasers;
    2. One laser fiber;
    3. A set of welding heads;
    4. One 1.5P chiller;
    5. A set of computer welding systems;
    6. 500*300*300 electric translation stage set;
    7. a set of 3600 four-axis control system;
    8. a set of host cabinets.
