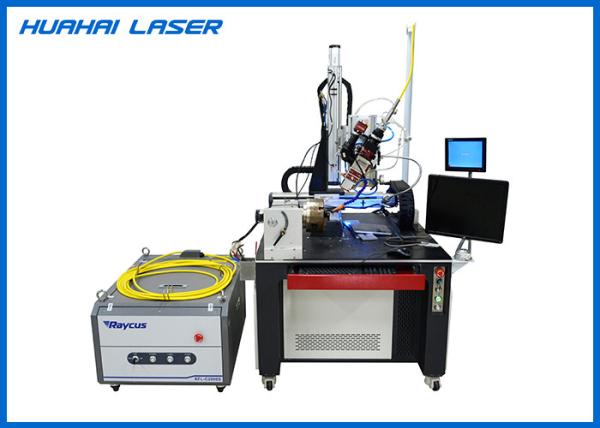

    Continuous Fiber Laser Welding Machine For Metal Stainless Pipe Circular Tube

    Ask Lasest Price
    Brand Name : Huahai Laser
    Model Number : HB-FW
    Certification : CE,FDA
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 100sets/month
    Delivery Time : 10-15 working days
    Price : Negotiable
    • Product Details
    • Company Profile

    Continuous Fiber Laser Welding Machine For Metal Stainless Pipe Circular Tube

    1000w Fiber Laser Welding Machine Continuous welding For Metal Stainless , Pipe , Circular Tube , Power Battery Welding


    Introduction:


    Fiber laser welding machine is a device, which makes the high-energy laser a long-distance transmission through the flexible fiber, and welds the work-pieces by collimated and focused light beams. It has great flexibility to implement flexible transfer and non-contact welding for the inaccessible parts. When laser is homogenized through the fiber transmission, the weld spots are uniform and smaller and heat-affected zone shrunk. Multiple out-put through energy-split or time split can be realized.


    Features:


    1. Imported gold cavity, corrosion resistance, life 8-10 years, xenon lamp life’s more than 800 million times.
    2. High laser energy density, small thermal effect area, not easy deformation, less or no subsequent processing.
    3. Good quality laser beam, high conversion efficiency and therefore high welding speed, high aspect ratio, high strength.
    4. Good welding quality, smooth and beautiful appearance.
    5. Choose a specific fiber to achieve the welding of tiny solder bumps.
    6. Multi-channel fiber output, up to 4 fiber at the same time, significant cost savings, improve welding efficiency and reduce equipment space.
    7. Excellent spectral system minimizes energy loss to ensure that the laser energy of each fiber is almost the same.


    Advantages:


    1. Optional CCD camera monitoring system, easy to observe and precise positioning.
    2. Uniform energy distribution of welding spot, the best spot needed for welding characteristics.
    3. Adapt to a variety of complex welds, spot welding of various devices, and within 1mm sheet of seam welding.

    4. Customized automatic fixture for mass production.


    Applications:


    Fiber laser welder is widely used in power battery,mobile phone battery shell, electronic components, mobile communication, precision equipment, hardware products, automotive accessories, glasses, clocks, jewelry, medical equipment, thermal cups, wine pots, kitchens and other industries.


    Specifications:


    Laser power500W800W1000W1500W2000W3300W5000W
    Working modecontinuous and modulate
    Laser wavelength1064nm
    Beam qualityM2<1.1M2<1.15M2<1.2M2<1.2M2<1.2M2<1.2M2<1.2
    standard output laser power±2%
    Line width<4nm<4~5nm<5nm<5nm<5nm<5nm<5nm
    Power supply

    AC220V±10%

    50/60Hz

    AC380V±10%

    3P+PE

    Cooling systemAir coolingWater cooling
    Straight modulate0~5KHz

    Continuous Fiber Laser Welding Machine For Metal Stainless Pipe Circular Tube


    Samples:


    Continuous Fiber Laser Welding Machine For Metal Stainless Pipe Circular Tube


    Service:


    1) Free Pre-Sales Consulting / Free Sample Welding
    2) Strict Quality Control of Production
    3) 1 Year Quality Guarantee
    4) 12 hours Quick Feedback & After-Sales Service
    5) Quick Back-up Parts Available & Technical Assistance
    6) Free Training Service
    7) Special Designing, Customized, OEM Order is accepted
