800W Handheld Laser Welding Machine For Steel Aluminum Alloy Door
Windows
Product Advantages
1. The laser beam quality is excellent, the welding speed is fast,
the welding seam is strong. Handheld fiber laser welding machine
has the advantages of high efficiency and perfect welding scheme
for users.
2. High conversion rate, low energy consumption. Long-term use can
save a lot of processing costs and labour cost.
3. High reliability, can be 24 hours continuous and stable
processing, to meet the needs of industrial mass production and
processing.
4. Hand-held operation mode, special welding nozzles can be
assembled to weld workpieces at any position and at any angle.
5. Using fiber laser source. The laser beam quality is quite good,
and its output power is stable which can assure the high welding
performance. Welding once forming, meet welding requirements of
high-quality products.
6. Very beautiful welding performance, no weld scar, no
deformation,no discoloration. no need follow-up grinding
7. It is easy to operate, easy to learn, quick to start. No need
skilled workers. It will save much labor cost.
8. The machine equip with safety control box, which can control the
laser beam only comes out when welding head touch metal surface.
The exclusive laser safety operation protection function ensures
the safety of operators.
Continuous fiber laser welding VS Yag pulse laser welding:
1. The fiber continuous laser welding machine uses 500W-1500W
laser, the laser has a long service lifeand the service life can
reach 100,000 hours.
2. The electro-optic conversion efficiency is high, and the energy
of the power shaving is 25%-30% converted into laser, and the fiber
conversion rate is more than 10 times that of the YAG laser.
3. The whole machine has no consumables. YAG pulse welding machine
should replace the xenon lamp and lens regularly.
4. The whole machine has low energy consumption, saves electricity,
high stability, maintenance-free, and low cost of use.
5. The laser welding energy density is high, welding speed is four
times that of YAG pulse. The weld seam is thin, thermal deformation
is small, and heat affected zone is narrow and deep.
6. Optical fiber output, easy to match with automated workbench or
robot to improve production efficiency,and can meet 24 hours of
continuous work.
Technical Parameters
Model | HB-FW500 | HB-FW800 | HB-FW1000 |
Optical Parameters |
Work Model | Continuous/ Modulation |
Average Power (Continuous)(W) | >500 | >800 | >1000 |
Wavelength(nm) | 1070-1080 |
Repetitive Rate(Hz) | 0-50kHZ |
|
Pluse Width(ms) | 0.05-50 |
|
Output Power Stability | <2% |
Red Light | have |
Output Parameters |
Output Connector | QBH( Customizable) |
Electronic Control Characteristics |
Input Voltage | 200-240, Single- phase | 340-420,Three- Phase-Five-Wire |
Power Adjustment(%) | 10-100 |
Power Consumption(W) | 5KW | 5KW | 6KW |
Others |
Size(mm) | 166*107*113CM |
|
|
Weight | 343KG |
|
|
Cooling way | Water Cooling |
Operating Temperature(C) | 10-40 |
After-service
1) Free Pre-Sales Consulting / Free Sample welding
2) Strict Quality Control of Production
3) 7-10 Days Quick Delivery
4) 2 Years Quality Guarantee
5) 12 hours Quick Feedback & After-Sales Service
6) Quick Back-up Parts Available & Technical Assistance
7) Free Training Service
8) Special Designing, Customized, OEM Order is accepted

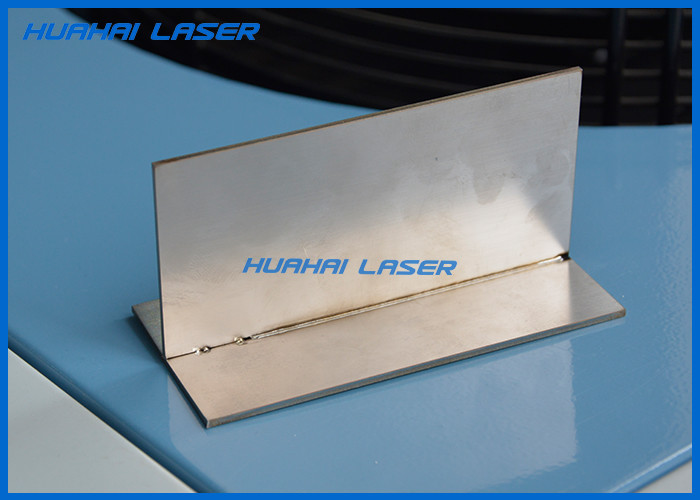

Sample show
