500W 1000W Handheld Wobble Fiber Laser Welding Machine For
Stainless Steel Kintchenware Sink
Application
Fiber laser welding machine mainly applied for welding on the thin
wall material, precision parts,which can realize spot welding,butt
welding,welding stack,seal welding etc,very small welding width and
heat affecting zoon samll deformation, high welding speed,smooth
and nice welding seam,high welding quality, no pores,can control
precisely,small focusing point,high positioning accuracy.
Product characteristics
1) The first integrated cabinet in China, which integrates laser,
water chiller and software control, has the unique advantages of
small area, convenient movement and strong functionality.
2) Handheld welding joint is equipped with 5m-10m original optical
fiber, which is flexible and convenient.
3) Hand-held operation mode, special welding nozzles can be
assembled to weld workpieces at any position and at any angle.
4) Matching various laser sources, suitable for a variety of
process requirements of workpieces, welding once forming, basically
no deformation, to meet the requirements of high-quality products.
5) Beautiful weld, no weld scar, no discoloration, no need for
follow-up grinding.
6) The welding is firm and the strength of the weld reaches or even
exceeds the base metal itself.
7) It is suitable for tailor welding, overlay welding, fillet
welding, arc welding, irregular shape welding, etc.
8) The whole set of equipment has strong function, meets ergonomic
design, and is suitable for various working environment scenarios.
9) The exclusive laser safety operation protection function ensures
the safety of operators during their work.
10) It is easy to operate, easy to learn, quick to start, low
technical threshold for operators, and saves labor costs.
Why choose the Huahai's handheld laser welding machine
1. We are online 24/7 hours, if you have any problem or requires
you can contact us anytime.
2. Eight capacitor, two more than general manufactures to ensure
the put out light more stable of the machine.
3. Low consumables, free of maintenance.
4. High quality with cost-effective price.
5. It is 4-10 times higher than that ordinary laser spot welding.
6. No special foundations required, low operating cost, easy to
operation.
Parameters
| Laser wavelength | 1080nm |
| Average Output Power | 500W 750W 1000W 1500W |
| working mode | Continuous mode |
| Pulse Repetition Rate | 10-50KHZ |
| cooling-down method | Water cooling |
| M2 | ＜1.15㎡ |
| Beam Diameter | 25,30,50,100μm(Option) |
| Fiber cable length | 15M |
| Beam Circularity | ＞90% |
| Polarization Ratio | ＞100:1 |
| Operating Temp. & RH | 10 - 40 ℃ / 10-85% |
| Laser source | Raycus , IPG , JPT optional |
| Electricity Requirement | 380VAC/50-60HZ |
| Power Consumption | 8KW |
| Welding speed | It depend on the material and material thickness |
| Line width | 4-5nm |
| Working mode | Handheld mode |
| Straight modulate | 0-5KHz |
| Warranty | Two Years |

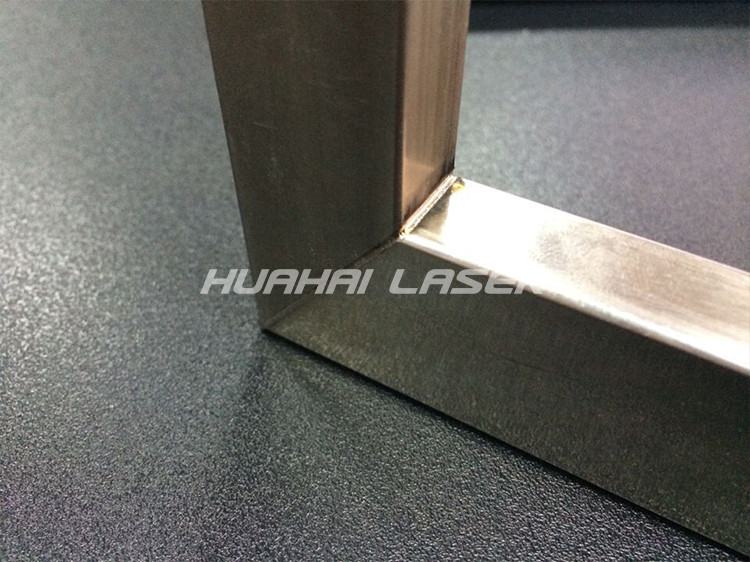

Samples
