    High Efficiency Fiber Laser Welding Machine Integrated Structure Easy Operation

    Ask Lasest Price
    Brand Name : Huahai Laser
    Model Number : HB-FW
    Certification : CE FDA ROHS
    Price : Negotiable
    Payment Terms : T/T, D/P, L/C, Western Union
    Supply Ability : 50 Sets per month
    Delivery Time : 10-12 workdays
    • Product Details
    • Company Profile

    High Efficiency Fiber Laser Welding Machine Integrated Structure Easy Operation

    Handheld Laser Welding Machine 1KW 500W Fiber Laser Welder for Welding Metal Alloy Aluminium Copper


    The advantage of Laser welding :


    Today many companies use Lasers to weld parts together during the manufacturing stage of product design. These companies come from a wide range of industry sectors including medical, automotive and aerospace. There are many reasons why Laser welding is increasingly becoming the preferred technology in these industries; read on to discover some of the key reasons and benefits for adopting this technology.


    Advantage of Fiber type Laser welding :


    1) Adopt integrated structure, that’s its control system, laser system and cooling system are all built-in and integrated.

    2) Handheld holding welding head is easily operated, picking and moving.

    3) Using the fiber laser source .The laser beam quality is quite good, and its output power is stable which can assure the high welding performance.

    4) The machine is with the safety control box, which can control the laser beam only comes out when welding starts.

    5) Using special welding software .It has function of continuous laser beam, and the adjustable

    6) output waveform , which can assure the precious and high-speed welding .

    7) It costs very low working consumption. Using laser machine one hour only consume 1-1.5 degree electricity, and weld all kinds of thin metal plates.

    8) It can weld a wide range of metal, includes the stainless steel, carbon steel, cooper ,aluminum alloy , Zinc plated board


    Application :


    It can weld a wide range of metal, includes the stainless steel, carbon steel, cooper ,aluminum alloy , Zinc plated board, etc .

    For example, welding 2mm stainless steel plates, cabinets and other work-pieces.

    It has wide field application, includes aerospace, instruments, manufacturing industry, metal processing industry.


    parameters :


    Machine appearance
    ModelHB-FW500HB-FW750HB-FW1000
    Max.laser output power500W750W1000W
    Working modeContinuous or modulate
    Laser wavelength1070mm
    Beam qualityM2<1.1M2<1.15M2<1.2
    Standard output laser power± 2%± 2%± 2%
    Line width<4nm<4-5nm<5nm
    Power supplyAC220V ±10% 50/60HzAC220V ±10% 50/60HzAC380V ±10% 50/60Hz
    Cooling systemWater coolingWater coolingWater cooling
    Straight modulate0-5KHZ0-5KHZ0-5KHZ
    Whole machine power consumption4KW5KW6KW

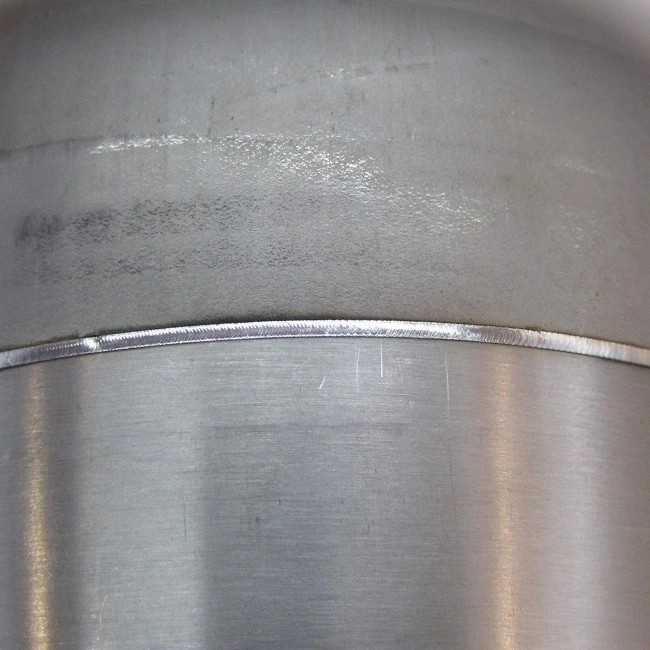

    Samples :


    High Efficiency Fiber Laser Welding Machine Integrated Structure Easy Operation
