1000w Metal Fiber Laser Cutting Machine with Raycus Laser Source
For Carbon Steel Stainless Steel
Features
1. The fiber laser cutting machine with the highest precision in
China,it can cut small metal bike design with the size of half a
coin.
2. It has equipped with original Japan imported servo motor and
Taiwan precise ball screw guide rail,high speed.
3. It has integrated machine accessories design,fast
disassembling.And it has equipped left and right drawers to
collecting,saving space.
4. For professional use of cutting carbon steel, stainless
steel,galvanized steel and some other kinds of thin metal sheets.
Machine table Features
1. Gantry dual drive, adopting advanced gear rack transmission
structure. Equipped with grinding gear and rack, and through the
precision collimator one time metering assembly. The machine will
secure long-term high cutting speed, high precision transmission.
2. The machine table machined by large planomiller, with high
temperature annealing twice, and high strength complete welding,
customer will have long-term payback.
Application
Industries includes all metal processing industries ,includes
Electric Cabinet, House decoration ,Kitchenware, Car spares and
accessories ,Saw Blade, Mechanical Parts, Electrical Equipment
Components, Lighting hardware ,Display equipment ,Cooking Utensil,
Hardware, Crafts, Spectacle Frame, Advertising channel letters,
Subway Parts, Household Appliances, Electrical Appliance, Precision
Components, Tools, Gifts and Crafts, , Gearing Components, Reamer
,Aviation and ship building ,etc.
It can zarry on non-contact cutting on metal sheet, pipe,
especially for stainless steel, sttel plate,diomond saw blades and
othermetal materials, it has excellent processiong for the various
high-brittle hard alloys. In the lines of hardware and metal sheet
industries, laser cutting technology can be partially replace the
line cutting.
Specifications
| Laser output power | 500W/750W/1000W/1500W//2000W |
| Laser wavelength | 1070 nm |
| Max cutting speed | 12m/min |
| Max cutting thickness | 3-15mm according to watt and material |
| Output energy regulating | 10%~100% |
| Input electric power for laser | ≤2KW |
| Type of cooling | Water cooling |
| Laser source | IPG/Raycus |
| Cutting head | Raytool |
| Controlling system | Cypcut |
| Drive mode | Imported servo motor |
| Max-range for cutting | 3000mm×1500 mm/ 2500x1300mm |
| Power supply | 380V/50HZ |
| Gross weight | 3MTS |
1000w Metal Fiber Laser Cutting Machine Cutting Parameters
Material | Thickness | Speed (m/min) | Pressure (MPA) | Gas | Cutting Height |
Stainless Steel | 0.5 | >24 | 1 | N2 | 0.6 |
1 | 17~21 | >1.1 | N2 | 0.6 |
2 | 5.4~7.2 | >1.5 | N2 | 0.6 |
3 | 2.1~3 | >2.0 | N2 | 0.6 |
4 | 0.8~1.5 | >2.0 | N2 | 0.6 |
5 | 0.6~0.9 | >2.0 | N2 | 0.6 |
Carbon Steel | 1 | 15~18 | 1 | O2 | 1 |
2 | 5.1~6 | 0.5~0.8 | O2 | 1 |
3 | 3.5~4.2 | 0.25~0.4 | O2 | 1 |
4 | 2.3~2.7 | 0.15~0.2 | O2 | 1 |
5 | 1.7~2.1 | 0.15~0.2 | O2 | 1 |
6 | 1.2~1.8 | 0.10~0.15 | O2 | 1 |
8 | 0.9~1.1 | 0.10~0.15 | O2 | 1 |
10 | 0.6~0.72 | 0.10~0.15 | O2 | 1 |

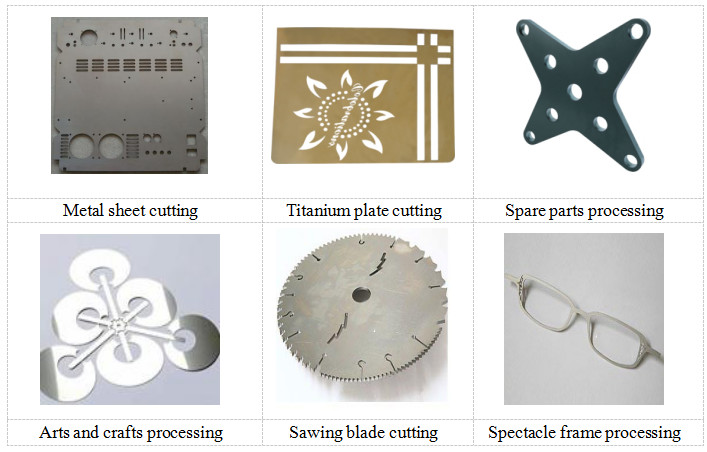

Samples:
