Water Cooling Fiber Laser Cutting Equipment High Efficiency With Exchange Table

    Buy cheap Water Cooling Fiber Laser Cutting Equipment High Efficiency With Exchange Table from wholesalers

    Buy cheap Water Cooling Fiber Laser Cutting Equipment High Efficiency With Exchange Table from wholesalers
    • Buy cheap Water Cooling Fiber Laser Cutting Equipment High Efficiency With Exchange Table from wholesalers
    • Buy cheap Water Cooling Fiber Laser Cutting Equipment High Efficiency With Exchange Table from wholesalers
    • Buy cheap Water Cooling Fiber Laser Cutting Equipment High Efficiency With Exchange Table from wholesalers

    Water Cooling Fiber Laser Cutting Equipment High Efficiency With Exchange Table

    Ask Lasest Price
    Brand Name : Huahai laser
    Model Number : 3000*1500MM
    Certification : CE FDA
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 200 sets/ Month
    Delivery Time : 15-30 working days
    • Product Details
    • Company Profile

    Water Cooling Fiber Laser Cutting Equipment High Efficiency With Exchange Table

    Laser Cutting Equipment With Laser Fiber Cutting 1kw 1.5kw 2kw 3kw 4kw With Exchange Table


    Main Feature:


    1. Metal cutting machine which is economical and cost-effective.
    2. Lower investment, lower operating cost and lower maintenance cost.
    3. Non-contact height-adjusting configuration enables customers to cut almost all materials with lowest cost.
    4. Working table: Open blade, made of special treated material, anti-curling and easy to operate, is suitable for all kinds of hard materials. Steady chassis to ensure stability and precision during high speed work.
    5. High efficiency for tube cutting with stable laser path, service time is around 100000 hours.


    Features:


    1. Adopt gantry structure , Cast cross-girder integrally, higher rigidity, stability, shock resistance.
    2. High-performance laser source and stable operating system,which makes the best cutting effect.
    3. The machine owns perfect cooling system,lubrication system and dust removal system,which make sure the machine can operate stable,efficient and durable.
    4. The machine has automatic height adjustment,which keeps the focal length constant and stable cutting quality.
    5. The machine is used for cutting a variety of metal,the cutting effect is excellent and stable.
    6. With a specialized CAD / CAM automatic programming software, automatic nesting software to maximizing saving raw materials.
    7. Through the Ethernet interface directly to communicate with the CNC system , to achieve communication and remote monitoring for the laser cutting process.


    Parameters:
    working area
    1500mm*3000mm
    1500mm*4000mm
    Tube length
    3m/6m/9m
    Max moving speed
    100m/min
    Max cutting speed
    35m/min
    Laser source
    Maxphotonics; IPG; Raycus
    Positioning Accuracy
    0.03mm
    Repeated Positioning Accuracy
    0.02mm
    Laser Output Power
    500W/1000W/2000W/3000W/4000W
    Min Line Width
    0.1mm
    Power Allocation
    380V/220V±10%, 50Hz/60Hz
    Continuous Working Time
    24 hours
    Cooling Type
    Water cooling
    Continuous Working Time
    24 hours
    Related Weight
    Whole machien: approx 5 tons, actual weight based on final configuration (depends on model)
    Machine Size (l*w*h)
    5000*3300*2000mm
    Accessories (l*w*h)
    Water chiller 1*1*1.2m, contol box 1*0.8*1.8m, fiber laser generator 0.5*0.6*0.14m
    Control system
    Cypcut control system Graphic format supported: DST, PLT, BMP, DXF, DWG, AI, LAS,etc.

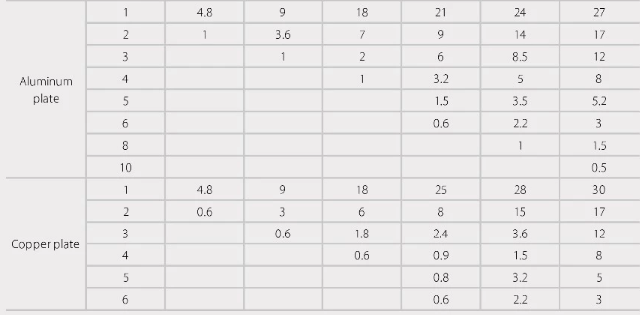

    Cutting parameter:
