Stainless Steel Parts Advertising Channel Letter Handheld Laser
Welding Machine Price
Machine Production:
With the booming of global advertising industry, metal letters has
been more and more popular because of its
colorfulness,attractiveness, heating-proof, frozen-proof, no
deformation, no fadedness (8-10 years color preservation),
corrosion proof, rain-proof, and spontaneous combustion proof and
some other good features.
AD metal letters are made of stainless steel, aluminum, brass or
other metal sheet being cut, polished, hemmed, and welded. The core
feature of AD metal letters is being rustproof, with long life span
and dimensional looks. It's widely used in LED illuminated
billboard, exterior/interior signs, branding, door plate and etc.
Huahai Laser Channel letter aluminum laser welding machine is used
for making a variety of stainless steel letter, LED luminous
characters, AD Logos, signs and other fast welding.Logo making,
fine word production, metal word production, Copper factory,
advertising production company, and so on. Perfectly weld for
0.1-2mm stainless steel, galvanized plate and bronzing plate;
0.1~1.2mm copper brass and aluminum.
Features:
1. Red light finds the welding point fast, CCD intuitive
observation, optional microscope.
2. Marble working platform, to ensure that the bright face plate
does not scratch.
3. Machining speed, dedicated fixed focus position of the rotation
of the bearing rod, without the need for CCD and microscope. It can
quickly focus on the welding.
4. Small thermal deformation and heat affected zone.
5. local heat treatment can be carried out on the metal word;
6. Available for the processing of complex shape of parts and small
words.
7. Processing without noise, no pollution to the environment;
8. Ultra fine bearing rotating positioning rod, friction plate
welding word, also need not adjust the spot position in the font
corner.
9. Owing to the advanced processing method, the quality of the
existing metal character is greatly improved.
10. LED ring special lighting lamp, no dead spot.
11. The self-produced high peak laser power supply, for other brand
is difficult to weld aluminum. The machine can easily achieve (400W
models for welding aluminum models).
12. standard models and double light path optional hard light
welding small, 5 meter long fiber pen welding with Chinese
characters.
Application:

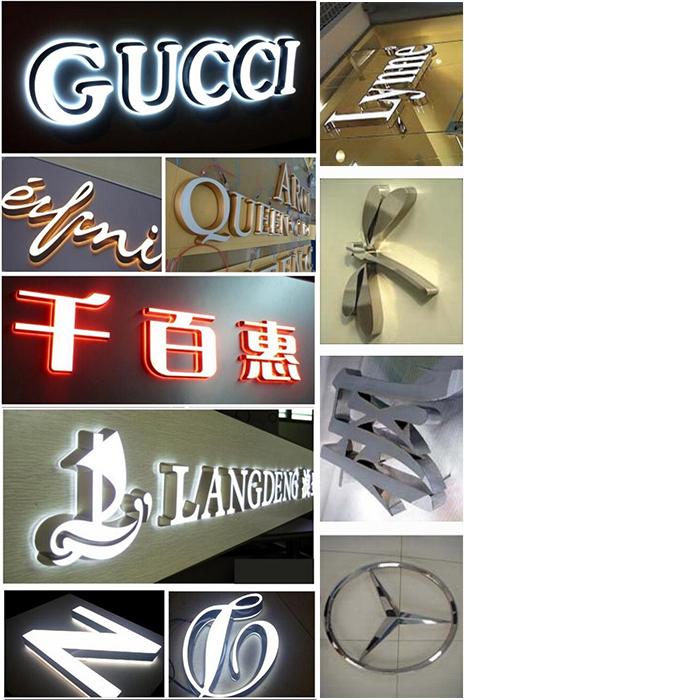

Widely used in all kinds of stainless steel, LED channel letter,
LOGO identity, signage, advertising products such as rapid
precision welding.
Technical parameters:
| Model | HB-HW300w/400w/600w |
| Laser power | 300w/400w/600w |
| Laser medium | Nd:YAG and fiber |
| Laser wave length | 1064nm |
| Welding min. Molten pool | 0.1mm |
| Welding depth | 1mm |
| Pulse width | 0.1-20ms continuously adjustable |
| Pulse rate | 1-200Hz continuously adjustable |
| Viewing system | CCD camera and red light positioning |
| Power | ≤6KW |
| Power source | 220V/50Hz/30A |
| Table format | 1000x800mm |
After-service
1) Free Pre-Sales Consulting / Free Sample Marking
2) Strict Quality Control of Production
3) 5-7 Days Quick Delivery
4) 1 Year Quality Guarantee
5) 12 hours Quick Feedback & After-Sales Service
6) Quick Back-up Parts Available & Technical Assistance
7) Free Training Service
8) Special Designing, Customized, OEM Order is accepted
.
