Handheld Torch Laser Welding Equipment , Channel Letter Laser Soldering Machine

300W Handheld Torch Channel Letter Laser Welding Machine For Led Sign Signage

Product Introduction

1. 5 meters long fiber flexible transmission, the laser head can enter freely for complex workpieces that can't be accessed by ordinary welding
2. Precision welding word welding machine advantages: high accuracy, can weld small and complex typeface and LOGO, high speed, no chromatic aberration and trace after welding, with beautiful appearance, no need processing.
3. No protuberant welding spot on the welding surface, no need the process of polishing and burnishing, saving working time, graceful and steady for the structure.
4. No noise and no pollution.
5. Option CCD Monitor, welding result is much clearer.
6. Engineers can quickly learn to operate.
7. High efficiency--This product breaks through traditional ways, using directional point to point welding way, the welding speed is 10 to 15 times faster than the traditional ways. High work efficiency, and workers sit to work, which solved the problem of the hard working.
8. No pollution-during the work there is no smoke, no strong light , low noise. No matter what size, how complicated the letter is, the machine can do it. The welding effect are precision, exquisite and solid.
9. Low loss, one hour down to 2kWh.

Application:

Channel Letter Laser Welding Machine is used for making a variety of metal stainless steel letter, LED luminous characters, customized metal signage, exterior billboards, AD Logos, signs and other fast welding. Logo making, fine word production, metal word production, Copper factory, advertising production company, and so on.

Applicable Materials: 0.1-2mm stainless steel, galvanized plate and bronzing plate; 1mm copper and aluminum.

Features:

1. Red light finds the welding point fast, CCD intuitive observation, optional microscope.
2. Marble working platform, to ensure that the bright face plate does not scratch.
3. Machining speed, dedicated fixed focus position of the rotation of the bearing rod, without the need for CCD and microscope. It can quickly focus on the welding.
4. Small thermal deformation and heat affected zone.
5. local heat treatment can be carried out on the metal word;
6. Available for the processing of complex shape of parts and small words.
7. Processing without noise, no pollution to the environment;
8. Ultra fine bearing rotating positioning rod, friction plate welding word, also don't need adjust the spot position in the font corner.
9. Owing to the advanced processing method, the quality of the existing metal character is greatly improved.
10. LED ring special lighting lamp, no dead spot.
11. The self-produced high laser power supply, for other brand is difficult to weld aluminum. The machine can easily achieve (400W models for welding aluminum models).
12. Single path and double light path optional, 5 meters long fiber handheld welding torch is convenient to weld big letters and hard welding parts by single path. The fiber length Can be customized.

Technical Parameters

Model	HB-HW300	HB-HW450
Name	300W single light Laser welding machine	450W double light Laser welding machine
Machinery Part	Laser cavity length of 1100 mm, the laser head can rotate 360 degrees.
Working Area	750*1000MM
Load Bearing	≤200KG
Machine Power Supply	220V±10%/50/60Hz	380V±10%/50/60Hz
Laser Type	Nd:YAG impulse xenon lamp
Spot Size	0．2-3．0mm
Laser Wave Length	1064nm
Impulse Width	≤10ms
Laser Power	300W	450W
Single Pulse Energy	90J	120J
Impulse Rate	≤30Hz	≤50Hz
Laser Output Focal Length	150-250mm
Laser Cooling	Water cooling
Cooling Capacity	2700W	5000W
Total Power	<7KW	<12KW
Viewing System	CCD
Machine Size Water Chiller	14008001100mm 600420750mm	15008001100mm 900600950mm
Package Size(machine body)	15008301240mm	16008001240mm 9607601150mm
Gross Weight	280KG	430KG

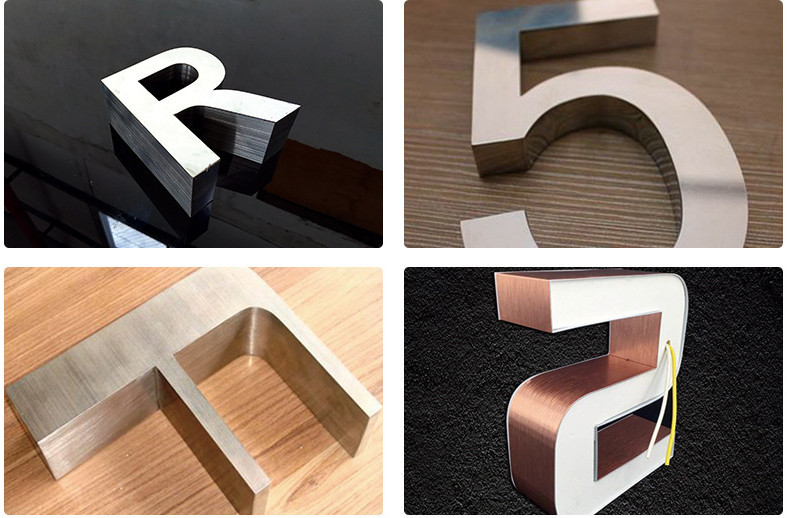

Sample show
